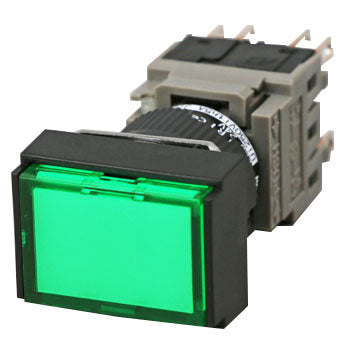

AH165-TLG22E3 | Fuji Electric | Push Button Switches
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for demanding industrial environments, the Fuji Electric AH165-TLG22E3 offers a highly reliable and responsive control solution. This compact, oil-tight illuminated pushbutton switch with a momentary green rectangular head is specifically designed to provide clear visual feedback while maintaining excellent operational integrity, even in challenging conditions. Furthermore, its 'snap-action' mechanism ensures consistent, high-reliability contact for critical electronic circuits, making it an outstanding choice for control panels where space is at a premium yet performance cannot be compromised. The ergonomic design also allows for easy manual installation and removal of contact blocks without specialized tools, streamlining maintenance efforts.
| Parameter | Specification |
|---|---|
| Type | Illuminated Push Button |
| Shape | Rectangular (Elongated flat) |
| Mounting Hole Diameter | ¦µ 16.2 mm |
| Contact Configuration | 2a / 2b (2 NO / 2 NC) |
| Operation Type | Momentary |
| Button Color | Green |
| Protection Class | IP65F (Oil Proof Type) |
| Rated Insulation Voltage | 250V AC/DC |
| Lamp Working Voltage | DC24V |
| Light Source | LED |
| Current Capacity (24 VDC) | 1 A |
| Mechanical Life | 1 Million Operations (Momentary) |
| Height | 18 mm |
| Width | 24 mm |
| Depth | 52.5 mm |
| Certifications | CE / UL / TUV / CSA |
