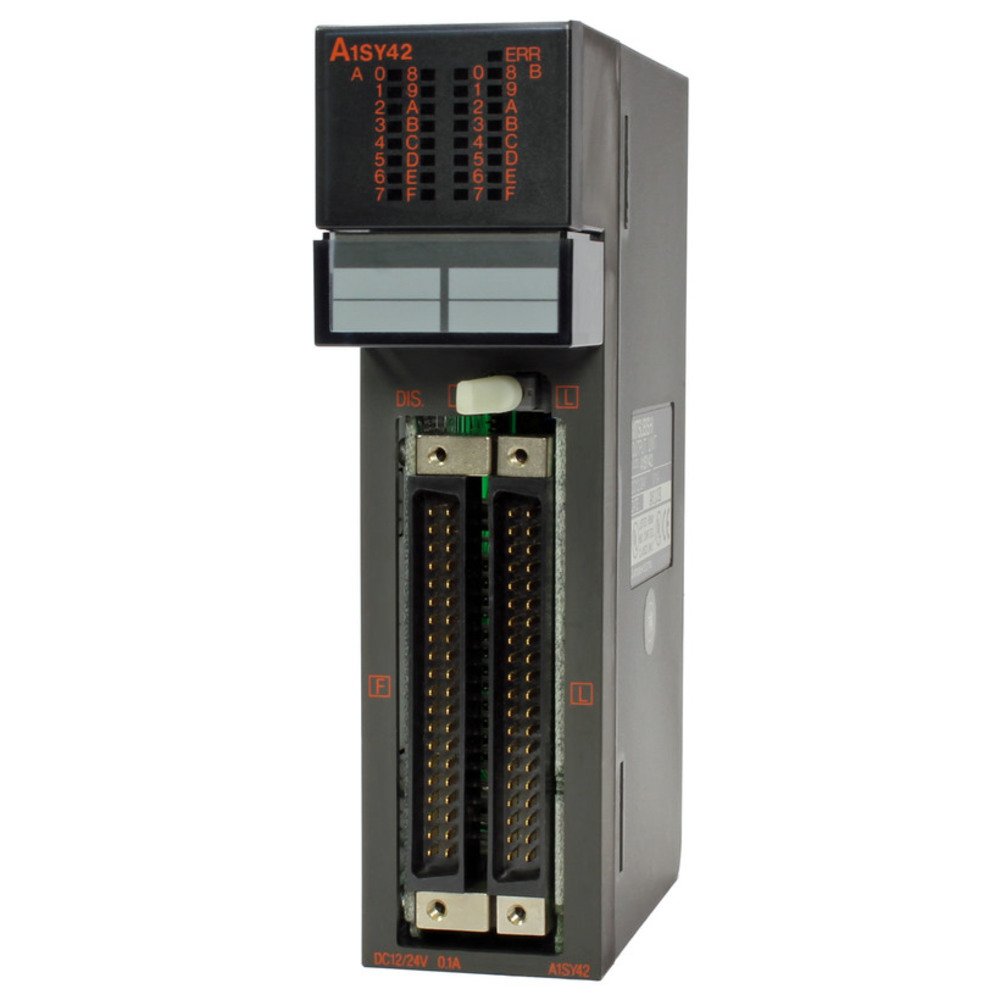

A1SY42 | Mitsubishi | Output Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for unwavering performance in industrial automation, the Mitsubishi A1SY42 stands as a highly dependable transistor leakage-type output module. This unit, seamlessly integrating into MELSEC A series PLCs, provides 64 discrete output points, thereby offering expansive control for a multitude of external devices. Its design ensures precise management of 12-24VDC loads, making it an excellent choice for demanding control systems where reliability and consistent operation are paramount.
| Parameter | Specification |
|---|---|
| Output Type | Transistor Drain (Leakage Type) |
| Number of Output Points | 64 points |
| Rated Load Voltage | 12/24 VDC |
| Operating Load Voltage Range | 10.2 to 30.4 VDC (Peak: 30 VDC) |
| Max. Load Current per Point | 0.1 A/point |
| Max. Load Current per Common | 1.6 A/common |
| Insulation Method | Photocoupler |
| Leakage Current at OFF | 0.1 mA or less |
| Response Time (ON/OFF) | 2 ms or less |
| Internal Current Consumption (5VDC, all points ON) | 930 mA (typical) |
| External Power Supply Voltage | 12/24 VDC (10.2 to 30 VDC) |
| Surge Suppression | Zener Diode |
| Weight | 0.27 kg |
| Operating Ambient Temperature | 0 to 55¡ãC |
| Compatibility | Mitsubishi MELSEC A Series PLCs |
