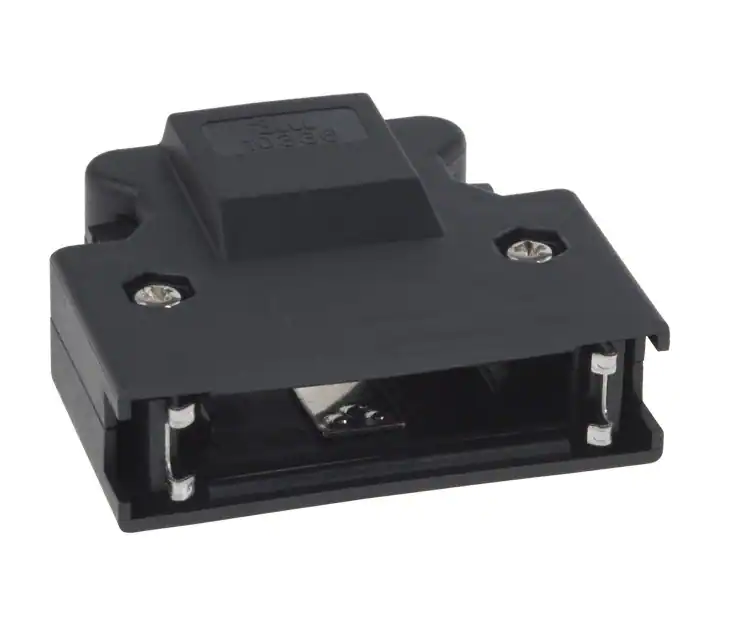

3M 10336 | Mitsubishi| Connector Accessories Solder Plug Junction
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Crucial for modern industrial automation, this 3M 36-position Mini D Ribbon (MDR) cable assembly delivers high-speed video and data transmission. Its robust, shielded design ensures exceptional signal integrity and reliability for critical interconnects.
| Parameter | Specification |
|---|---|
| Product Type | Mini D Ribbon (MDR) Cable Assembly |
| Positions | 36-Position |
| Connector Type | High Density MDR Male Plug (Both Ends) |
| Supports Signaling | LVDS Channel Link? |
| Voltage Rating | 30 V |
| Current Rating | 1 A |
| Insulation Resistance | > 1 x 108 Ω at 100 VDC |
| Withstanding Voltage | 350 VRMS for 1 minute |
| Characteristic Impedance | 100 ± 10 Ω |
| Conductor Size | 28 AWG Stranded |
| Temperature Rating | -20°C to +75°C |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Flammability Rating | AWM VW-1 |
| Compliance | RoHS Compliant 2005/95/EC |
